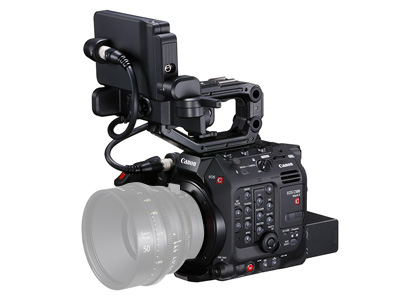

Canon C500 MKII 5.9K Camera Body

Code: CAN/C500MKIICFEXPRESSKIT
$16,455.00
Featuring a 5.9K full-frame sensor with a dynamic range of up to 15+ stops and a newly developed DIGIC DV 7 high-speed image-processing platform, the C500 MkII can record 5.9K/60p, 4K/60p and 2K/120p.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Full Frame 5.9K CMOS Sensor

Employing the DV7 high-speed image processing platform, the camera enables 5.9K/60p, 4K/60p and 2K/120p recording for the highest resolution. In-camera 5.9K Cinema RAW Light Recording is also possible.

Completely Customisable

The EOS C500 Mark II has been produced in a revolutionary compact and modular design which allows users to freely customise the camera to meet their shooting needs, including the ability to interchange the camera's mounts and add on a number of optional extension units.

Cinema RAW Light Recording

Employing Cinema RAW Light, a video format that allows for reduced file sizes while retaining video information, the EOS C500 Mark II makes possible the internal recording of RAW data without the use of an external recorder. The camera also supports XF-AVC, a video format that efficiently records compressed video data.

Cinema RAW Light And XF-AVC Recording

The EOS C500 Mark II supports two types of file formats to enable easier data ingestion for card recording, and makes 4K and HDR recording more accessible to the user.

DIGIC DV7

The newly developed DIGIC DV7 image processor boasts high data processing power while suppressing unwanted noise.

Faster Focusing

The EOS C500 Mark II boasts ground-breaking AF technology, using a CMOS sensor with a construction that combines the functions of both imaging and phase difference AF. When used with the LCD Monitor LM-V2 with touch panel support, the Dual Pixel CMOS AF provides sophisticated focusing with a single operator.

Specifications

Image Sensor
Image Sensor Size Full-Frame
Sensor Type CMOS
Sensor Resolution Actual: 6062 x 3432 (20.8 MP)
Resolution Modes 5952 x 3140 in 17:9 and Recording in DCI 4K, DCI 2K
5580 x 3140 in 16:9 and Recording in UHD 4K, 1080p
Color Filter Bayer
ISO 160 to 25,600 (Native)
100 to 102,400 (Expanded)
Camera
Lens Mount Canon EF
Lens Communication Yes, with Autofocus Support
Interchangeable Lens Mount Yes
Internal Filter Holder No
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 6 Stop (1/64), 8 Stop (1/256) ND Filters
Built-In Microphone Type Mono
Recording Media 2 x CFexpress Card Slots
1 x SD (Unspecified Type) Card Slot
Internal Recording
Raw Recording Cinema RAW Light 10-Bit, 12-Bit:
5952 x 3140 at 23.98/24/25/29.97/50/59.94 fps
4096 x 2160 at 23.98/24/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/24/25/29.97/50/59.94 fps
Recording Modes XF-AVC 4:2:2 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (160 to 810 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (160 to 810 Mb/s)
2048 x 1080p up to 120 fps (160 to 810 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (160 to 810 Mb/s)
1920 x 1080i at 50/59.94 fps (160 to 810 Mb/s)
XF-AVC 4:2:0 8-Bit:
2048 x 1080p at 23.98/24/25/29.97/50/59.94 fps (24 to 35 Mb/s)
Gamma Curve Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Normal 1, Wide DR
Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio
Interfaces
Video Connectors 1 x BNC (12G-SDI) Output
1 x HDMI Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Display
Display Type LCD
Screen Size 4.3"
Touchscreen Yes
Screen Resolution 2,760,000 Dots
EVF
EVF Optional, Not Included
Power
Battery Type Canon BP-A Series
General
Dimensions 6.6 x 6 x 5.8" / 16.76 x 15.24 x 14.73 cm
Weight 3.9 lb / 1.77 kg
