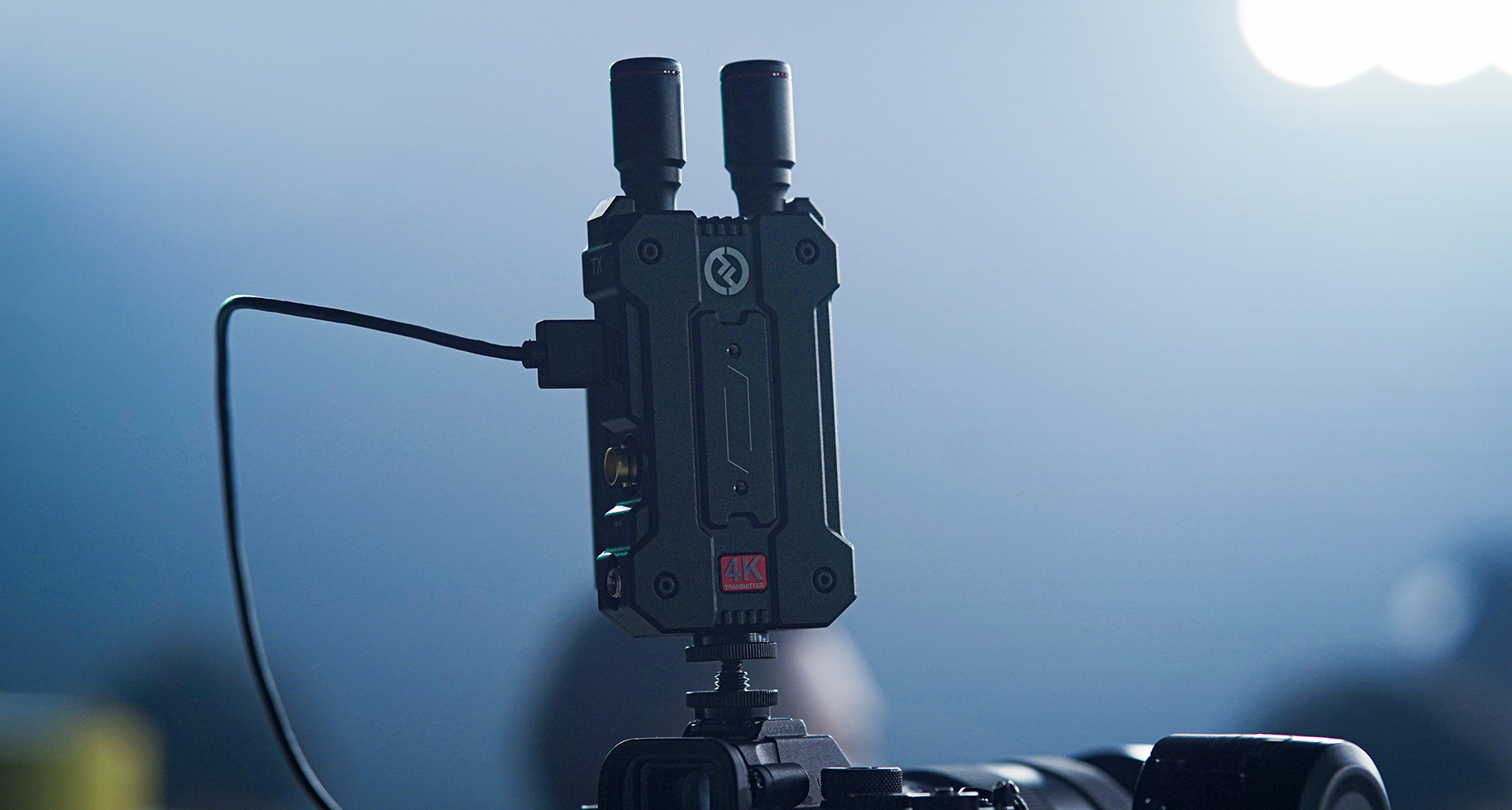

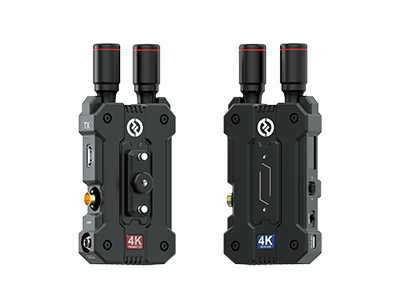

Hollyland MARS 4K UHD Wireless Link System

Code: DIS/MARS4KAU
$1,249.00

The new Hollyland Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

What's In The Box?

  • 1x Transmitter
  • 1x Receiver
  • 5x Antenna
  • 1x Cold Shoe
  • 1x Type-C OTG Converter
  • 1x Self-locking DC Adapter
  • 1x User Guide
  • 1x Warranty Card
  • 1x Expansion Accessory
  • The new Hollyland Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.

    Key Features

    • 4K UHD
    • 450ft (150m) LOS Range
    • 0.06s Low Latency
    • SDI & HDMI Support
    • Broadcast & Production Frame Rate
    • Flexible Monitoring Options
    • Smart Channel Scan & Selection
    • Multiple Power Supply Options

    4K UHD Video Transmission

    The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates—24p, 30p, and 60p.


    450ft (150m) LOS Range and 0.06s Ultra-low Latency

    The Mars 4K achieves an incredible LOS range of 450ft (150m) and ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a 12 Mbps data transfer rate.

    *The LOS range of 450ft (150m) is based on interference-free laboratory measurements.


    HDMI & SDI Dual Interfaces

    The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.


    Flexible Monitoring Options

    The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.


    Operational Efficient Design Form Factor

    The Mars 4K is featured with superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.


    Smart Channel Scan and Selection

    Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.


    Color LCD with an Exclusive Rocker-Style Button

    The Mars 4K features a color LCD with a user-friendly UI design that enables quick configurations and status checks. Its uniquely designed gamepad-styled button greatly improves the operational setup experience.


    Multiple Power Supply Options

    The Mars 4K supports a wide range of DC power options—6V to 16V, NP-F batteries, and USB Type-C chargers.


    Specifcations
    Latency Range 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
    450ft (150m) (test data in an open, interference-free outdoor environment)
    Bandwidth Audio format 20MHz
    2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b
    Operating temperature Storage temperature –10°C to 60°C – 40°C to 60°C
    ESD protection Contact discharge: ±6kV; air discharge: ±8kV (test data)
    Transmitter
    Interface Antenna (RP-SMA male)
    HDMI 1.4 b input (Type-A female)
    3G-SDI input
    DC input (2.0mm core socket)
    USB Type-C (USB 2.0 OTG)
    Voltage DC input: 6V–16V
    USB Type-C: 5V/2.5A
    (not supporting the QC and PD protocols)
    NP-F battery: 6.8V–8.4V
    Power consumption <8.5W (typical)
    Weight 223g (7.9oz)
    (excluding the antennas)
    Dimension (LxWxH): 115x65x32mm (4.5"x2.5"x1.3")
    Operating frequency 5.1GHz–5.8GHz
    Modulation mode 802.11n
    TX power 21dBm (max.)
    RX sensitivity N/A
    Bit rate 8Mbps–20Mbps
    Receiver
    Interface Antenna (RP-SMA male)
    HDMI 1.4 b output (Type-A female)
    3G-SDI output
    DC input (2.0mm core socket)
    USB Type-C (USB 2.0 OTG)
    Voltage DC input: 6V–16V
    USB Type-C: 5V/2.5A
    (not supporting the QC and PD protocols)
    NP-F battery: 6.8V–8.4V
    Power consumption <5W (typical)
    Weight 223g (7.9oz)
    (excluding the antennas)
    Dimension (LxWxH): 115x65x32mm (4.5"x2.5"x1.3")
    Operating frequency 5.1GHz–5.8GHz
    Modulation mode 802.11n
    TX power 21dBm (max.)
    RX sensitivity –90dBm
