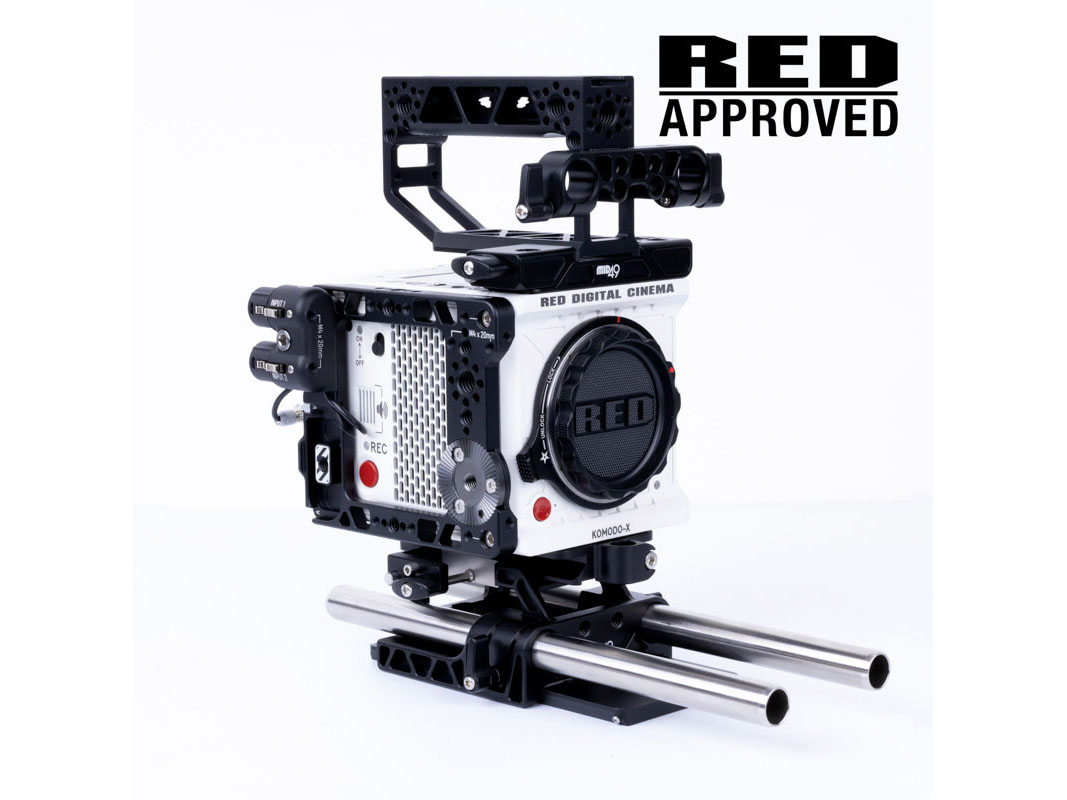

Mid Kit for RED KOMODO-X is an accessory kit that includes:
ARCA Top Mount (Komodo, Komodo-X, V-Raptor) is a top mount for RED Komodo-X that can attach to the front 1/4-20 or rear M4 screw holes and accepts the included handle and top plate.
ARCA Top Handle
Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.
ARCA Top Plate (114mm)
Sliding top plate that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes. 114mm dovetail length.
Rod Bracket (15mm LW)
Attaches to the Top Handle or Top Plate to provide 15mm LW rod support.
Baseline 15mm LW (RED Komodo, Komodo-X / Blackmagic Pocket 4K Baseplate)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Breakout Side Plate for RED KOMODO and KOMODO-X
Side plate that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus ideal screw locations for breakout boxes like the included AB-1.
Audio Breakout AB-1 (RED Komodo-X)*
Adapts camera 00 LEMO connector to two standard full-size XLR's and attaches by a 1/4-20 to the included Side Plate.
2x 15mm 9inch stainless steel rods are included in the Mid kit.
