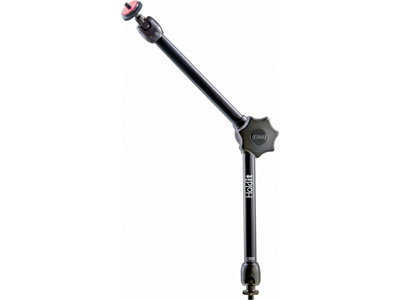

Noga GR Holder Arm: 1/4 inch screw - 3/8 inch screw (430mm Long)

Code: NOG/GR9038

$230.00

The ever reliable Noga Arm can be used to mount monitors, on-board lights or other accessories onto an enormous range of video or digital cinema cameras, via a 3/8" screw.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

In Stock

In stock - Ships in 1-2 days

The ever reliable Noga Arm can be used to mount monitors, on-board lights or other accessories onto an enormous range of video or digital cinema cameras, via a 1/4" screw.

Max. Load: 6kg/13.2lb
Weight: 1.04kg/2.28lb
Material: Aluminum
Total Length: 430mm/16.92"
Top Length/L2: 215mm/8.46"
Bottom Length/L1: 215mm/8.46"
Top Thread: 1/4" - 20 Ext. + Nut
Bottom Thread: 3/8" - 16 Ext.

Noga HoldIt Comparison Chart

	Max. load		Bottom length/L1		Arm L1	Top length/L2		Arm L2	Total length L1+L2
Order no.	lb	kg	mm	inch	Bottom external	mm	inch	Top external	mm	inch
LC9014	4.4	2	38	1.5	1/4”-20 Ext.	38	1.5	1/4”-20 + Nut	76	3
NF9014	6.6	3	56	2.2	1/4”-20 Ext.	56	2.2	1/4”-20 + Nut	112	4.4
NF9038	6.6	3	56	2.2	3/8”-16 Ext.	56	2.2	1/4”-20 + Nut	112	4.4
DG9014	8.8	4	110	4.33	1/4”-20 Ext.	110	4.33	1/4”-20 + Nut	220	8.66
DG9038	8.8	4	110	4.33	3/8”-16 Ext.	110	4.33	1/4”-20 + Nut	220	8.66
MG9038	11	5	133	5.25	3/8”-16 Ext.	133	5.25	1/4”-20 + Nut	266	10.5
GR9038	13.2	6	279	11.02	3/8”-16 Ext.	279	11.02	1/4”-20 + Nut	558	22.04

Click here for PDF

Max. Load	6kg / 13.2lb
Weight	1.04kg / 2.28lb
Material	Aluminum
Bottom Length/L1	215mm / 8.46"
Top Length/L2	215mm / 8.46"
Total Length L1+L2	430mm / 16.92"
Bottom Thread	3/8" - 16 Ext.
Top Thread	1/4" - 20 Ext. + Nut
