A 4K Remote Camera, and an Excellent HD Remote Camera

Despite its compact size, the AW-UE70 integrated remote camera is able to deliver 4K images with excellent zoom range and exceptional pan-tilt performance. This camera includes a variety of advanced and intelligent features, like in-camera 4K recording or 4K streaming over IP. The AW-UE70 remote camera is ready for the new demands of the industry through ultra HD resolution imagery. 4K images can be obtained in a variety of outputs including HDMI, USB and LAN. Besides its 4K capability, this camera performs extremely well in HD, also supporting 1080/50p format and 3G-SDI output. The camera is available in both black and white to tailor to different environments.

Excellent 4K images via HDMI, USB and IP, plus HD via 3G-SDI

• 1/2.3-type MOS sensor
• Optical zoom 20x, extendable by iA zoom (22x in 4K / 30x in HD)
• Optical Image Stabilization (OIS) that compensates vibration from audio speakers and closing doors
• High Dynamic Range function (HDR), suitable for backlit condition
• 4K video via HDMI, USB and LAN (UHD: 3840 x 2160 @25p)
• HD video via 3G-SDI (up to 1080/50p)
• External synchronization input, supporting both BB and Tri-level

In camera recording, also in 4K

• Video and audio can be recorded on an inserted microSD card^*2
• 4K and HD formats are supported, at different bit-rates up to 72Mbps
• Start/stop recording, clip downloading and FTP transferring can be controlled via IP
• Freeze During Preset function, enabling one-camera operation
• ND filter (Auto, Thru, 1/4, 1/16, 1/64)
• Night Mode makes shooting possible under IR light (supports automatic switching)
• Supports USB Video/Audio Class, so the camera can be used as high-quality webcam
• Equipped with RS422 and RS232C (in/out) remote terminals

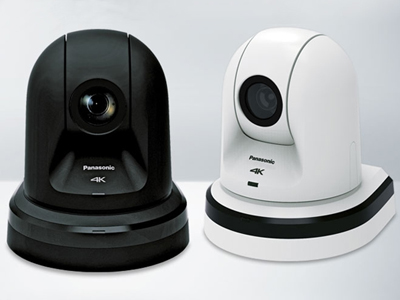

• Color variations (pearl white / metallic black) that can be chosen for different applications or conditions
• Camera control from iPad when it is used with optional Control Assist Camera AW-HEA10.^*3

Expanding the capabilities of broadcast camera systems

With such a wealth of features and outputs, the AW-UE70 4K remote camera can be used for such applications as remote video production, live events, signage or video conferencing among many others. This 4K remote camera also supports PoE+ (Power over Ethernet), meaning that only one Ethernet cable is required for power supply, control, video and embedded audio. Through the AW-UE70, Panasonic is expanding the capabilities and applications of integrated remote camera systems.

A Single Cable Solution for Remote Video and Audio Capture

• Supports PoE+^*1 for lower installation costs
• 4K or Full HD streaming is supported, at different bit-rates up to 50Mbps
• Up to four channels of IP streaming in HD (H.264 encoding)
• Audio input for mic/line (stereo mini jack), with equalizer function
• Audio embedding and encoding to IP, HDMI, SDI, USB and microSD recording
• IP control with image monitoring using PC, Mac and mobile terminals
• Up to 100 cameras can be controlled via IP from a single controller

^{*1. Abbreviation of Power over Ethernet Plus}

^{*2. MicroSD card is sold separately}

^{*3. An iPad is required (sold separately). The "PTZ Cntrl" app for iPad (free download from .the App Store) is required}
