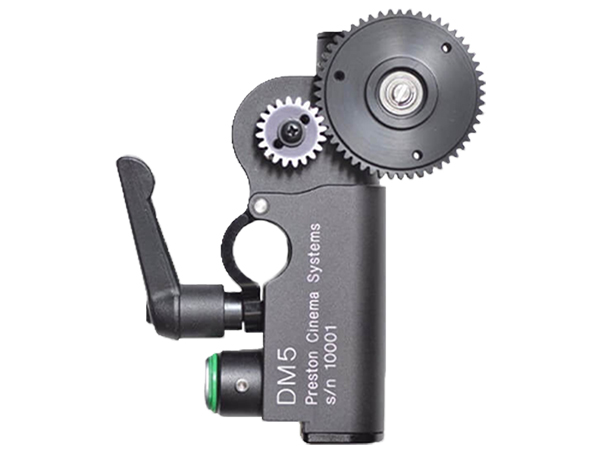

Preston DM5 Motor

Code: PRE/4209

The DM5 is a small motor with big performance. It offers a combination of speed and torque optimized for minimum size and weight.

For purchasing information

Enquire Now

What's In The Box?

  • Kipp Handle
  • 15mm rod

The DM5 is a small motor with big performance. It offers a combination of speed and torque optimized for minimum size and weight. It is perfectly suited for handheld, steadicam, or other weight-critical applications. Like all Preston digital motors, the DM5 is built to last with metal (not plastic) internal gears, coated with Diamond-Like Carbon that virtually eliminates wear and backlash.

The standard output gear is 0.25” wide, but can be swapped for a 0.5” version for lenses with significant travel on the focus ring. You can also stack multiple gears with the three 2-56 thread screw holes in the side of the gear to achieve the same effect. The unique clamp assembly means you can mount multiple DM5 motors on a single bracket and 15mm rod, eliminating additional motor brackets and making for a lighter, more compact camera package.

Key Features

  • Miniature motor with enough torque and speed for all but the heaviest zoom lenses
    • Lightest, most compact Preston motor available
    • Integrated Kipp handle and clamp to mount up to 3 DM5’s on a single swingarm motor bracket
    Specifications
    Dimensions4.3in x 1.8in x 0.9in (excl. kipp handle)
    Maximum Current2.3A
    Maximum Speed3.2 rev/sec
    Operating Temperature0F to 122F
    Weight7.9oz (225g)
