Preston Focus/Iris Wireless Hand Control Unit

Code: PRE/4024-G4

The Focus/Iris (aka Single Channel) wireless hand control provides the reliability and robustness you expect from Preston in a compact, lightweight package.

For purchasing information

Enquire Now

What's In The Box?

  • Blank marking ring
  • 2x FM-50 Batteries
  • FM-50 Battery Charger

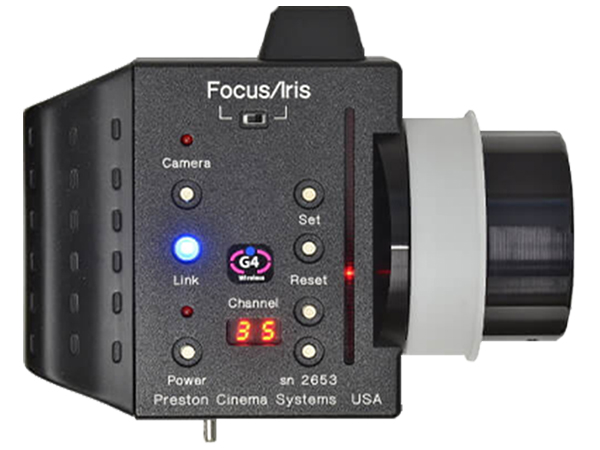

The Focus/Iris (aka Single Channel) wireless hand control provides the reliability and robustness you expect from Preston in a compact, lightweight package. It can be used with the rest of the FI+Z system to take over the Iris or Focus function from the HU4, selectable with a toggle switch on the front panel of the unit.

The F/I features a bright LED bargraph display of lens position. End limits can be set with the touch of a button and are shown as illuminated bars. A tri-color LED is used to indicate wireless signal strength, along with red LED indicators for wireless channel, battery voltage status, and camera run/stop.

A soft urethane grip makes for comfortable all-day operation. Marking discs slide over the knob onto an index pin, so the user can know the current lens position without being near the camera. Power is provided by a standard FM-50 Li-Ion battery, allowing for approximately 8 hours of operation.

Key Features

  • Interfaces with motor drivers to control one motor (Focus or Iris)
  • Perfect for breaking out Iris control for DPs
Specifications
Channels Focus or Iris
Dimensions 6.7in x 4.7in x 2.8in
Display Wireless channel
Frequency Band 2.4 GHz
Input Voltage 7-9VDC (battery)
Maximum Current Draw 0.09A (at 8V)
Operating Temperature 0F to 122F
Weight 24oz (680g)
Wireless Channels 60
Wireless Range 300m (line of sight)
