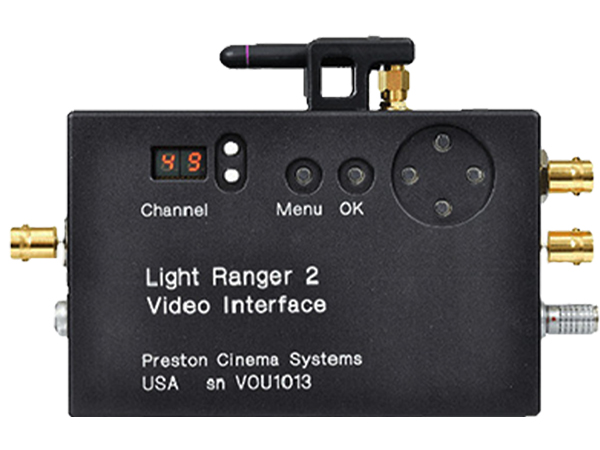

The Light Ranger 2 is the first and only focus assist system designed for modern high-resolution cameras. The LR2 incorporates an infrared LED/sensor system with 16 distinct measurement zones, allowing the focus puller to visualize the depth of an entire scene without looking away from the monitor. In this era of shooting the rehearsal, the LR2 provides focus pullers with innovative tools to accurately judge focus distance in even the toughest shooting scenarios.

Each of the 16 simultaneous distance measurements corresponds to a specific section of the image, and is represented with a green/white rectangle overlayed directly on top of the image at that location. The height of each bar corresponds to its distance in relation to the current knob setting of the HU4, giving immediate feedback to the focus puller for how to rotate the knob to bring any object into focus. White rectangles above the horizontal line on the monitor indicate the subject is further away than the current knob setting of the HU4, while rectangles below that line indicate a subject that is closer than the knob setting. Once the subject is within the depth of field (at the current HU4 knob setting), the rectangle(s) over that subject turns green.

The LR2 is perfect for crane, car-to-car, dolly, steadicam, and other shots where the camera is moving. It also excels in low-light and any other shot with extremely shallow depth-of-field.

_{Please see the LR2 manual for complete operational instructions.}

Key Features

• Industry-first focus assist system that overlays graphics onto a focus puller’s monitor
• Displays distance and depth information for up to 16 horizontal measurement zones across the frame
• Features manual and autofocus modes with seamless transition between the two
