Sennheiser EW 500 G4 Boom Mic Portable Wireless System (GBw: 606 - 678 MHz)

Code: SEN/509903

NO LONGER AVAILABLE

Overview
Specifications

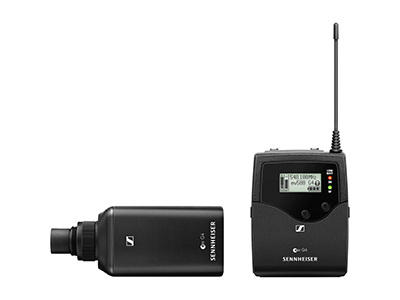

The Sennheiser EW 500 G4-GBW is a wireless system with a EK 500 G4 camera receiver and SKP 500 G4 pro plug-on transmitter. The phantom powered SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work to provide a high flexibility for your video sound and field recording applications. This wireless microphone system offers ultimate sound quality, simple mounting and an ease of use.

Features

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
With 48 V phantom powering

Specifications

EK 500 G4

Frequency range	GBw: 606 - 678 MHz
Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 130 g
Audio output	3.5 mm jack socket: +17 dBu (mono, unbalanced)
Signal-to-noise ratio	Line: ≥ 110 dBA Phones: approx. 90 dBA
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 140 mA with receiver switched off: ≤ 25 µA
Adjacent channel rejection	Typically ≥ 65 dB
Intermodulation attenuation	Typically ≥ 65 dB
Powering	3 V battery / 2.4 V rechargeable battery
Receiving frequency	Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
RF sensitivity	< 1.6 μV for 52 dBA eff S/N
Squelch	low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Temperature Range	-10 °C to +55 °C
Receiver Principle	Adaptive diversity
Blocking	≥ 70 dB

SKP 500 G4

Dimensions	Approx. 105 x 43 x 43 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 195 g
Signal-to-noise ratio	≥ 120 dBA
RF output power	switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 210 mA with transmitter switched off: ≤ 25 µA
Input impedance	68 kΩ, unbalanced
Max. Input voltage	6 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response	80 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	≤ ±15 ppm
