The Swit BIVO-200 is a 14.4V (10.8-16.8V) and 28.8V (22-33.6V) bi-voltage B-mount battery, designed for ARRI cameras and other devices compatible with standard voltage cameras and cine gear. The battery recognizes the ID pin resistor value of the B-mount plate and automatically outputs either 14.4V or 28.8V, eliminating any risk of misuse.
196Wh Capacity, 200W Load
The BIVO-200 battery has a large capacity of 196Wh, allowing it to run for more than 2 hours on an ARRI ALEXA 35 camera. It provides at least 200W of constant high load power for cine cameras and devices.
2x D-tap Power Outputs
The BIVO-200 features 2 D-tap power sockets. When the battery operates at 14.4V, the D-tap outputs 11-16.8V; when operating at 28.8V, the D-tap provides a regulated 16V, powering a variety of camera-top devices.
BIVO Series Family

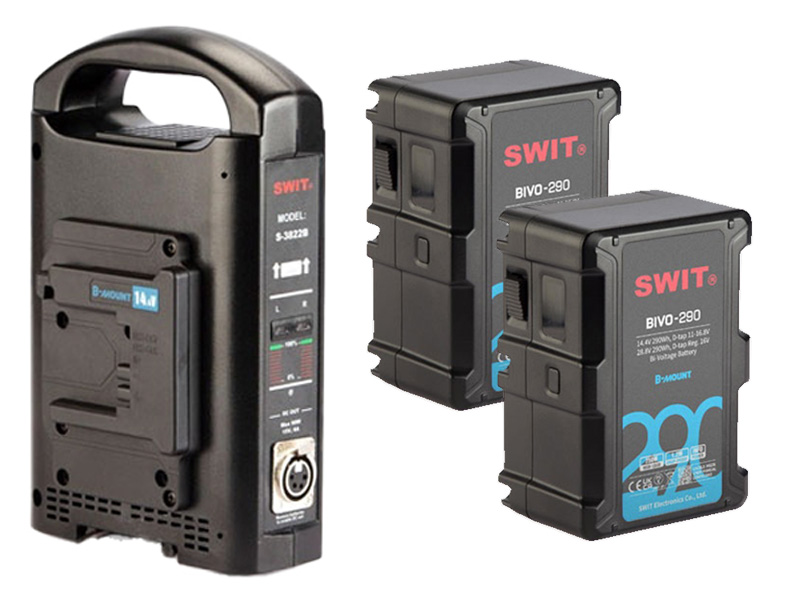

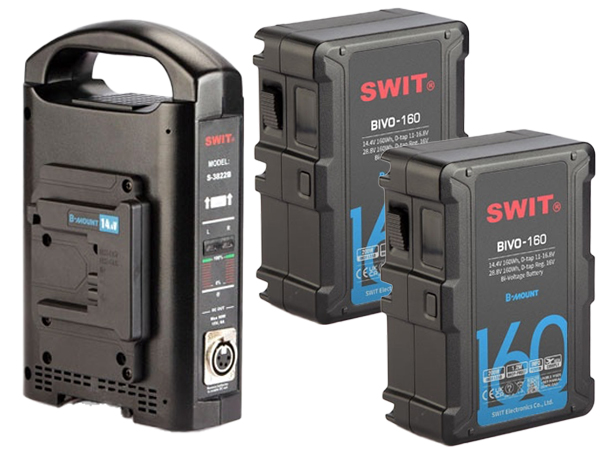

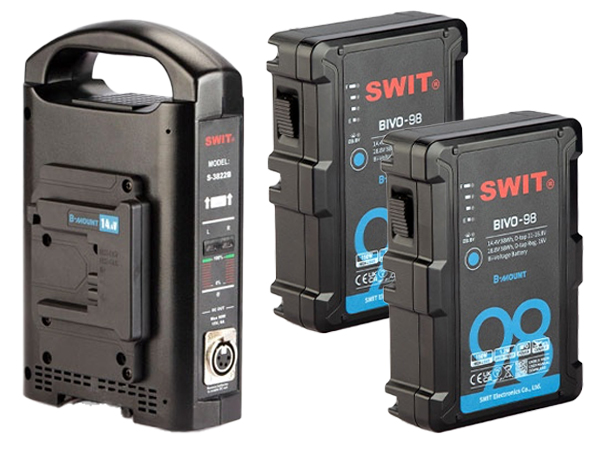

The BIVO series of bi-voltage B-mount batteries includes 98Wh, 160Wh, 196Wh, and 290Wh models, offering different sizes and capacities for stabilizer-handheld lightweight or long-duration power needs.
OLED Power Info Display
The BIVO-200 battery is equipped with an OLED screen that displays battery status and power information, including output voltage, power percentage, remaining runtime, and protection warning codes if any abnormalities are detected.
100W Super Fast Charging
You can charge four BIVO-200 batteries simultaneously on the SWIT PC-P461B B-mount charger at 33.6V 3A, enabling 100W super-fast charging. The charger will fully charge four BIVO-200 batteries in approximately 3 hours.
LED Torch
Double-press the Power Check button to activate the LED torch on the rear of the battery, making it easier to locate the B-mount plate in dark production environments. Double-press the button again to turn off the light, or it will automatically switch off after 30 seconds.
1.2-meter Drop Protection
The BIVO-200 battery is designed to withstand drops from heights of up to 1.2 meters at any angle, ensuring strength and reliability for filmmakers.

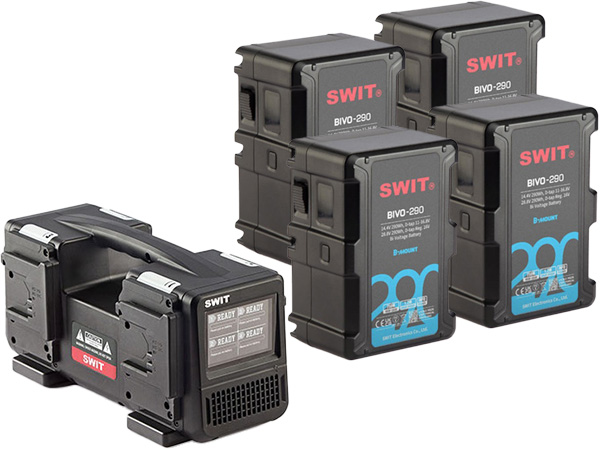

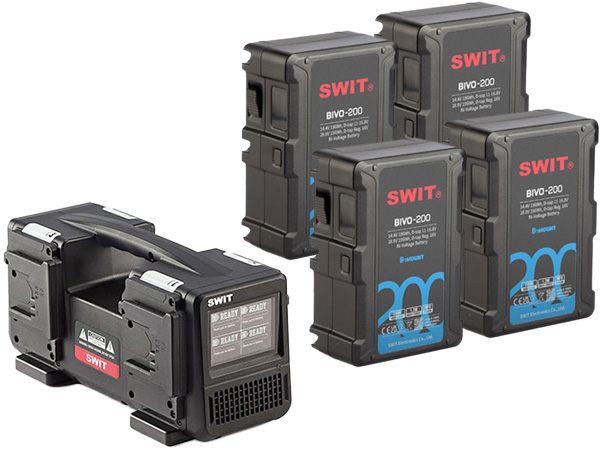

SWIT PC-P461B 33.6V 3A 4-Channel B-Mount Fast Charger
PC-P461B can charge 4x B-mount batteries simultaneously at 33.6V/3A, 100W per channel super fast charging. Save up to 60% charging time comparing to normal chargers.
Compatible with pure 28.8V B-mount batteries and 14.4V/28.8V bi-voltage B-mount batteries.
Charging Time
To charge 4x 290Wh B-mount batteries, the PC-P461B will take only 2 hours 30 minutes to charge to 80%, and 3 hours 50 minutes to fully charge.
3.5-inch Color LCD
PC-P461B provides a 3.5-inch color LCD panel to display charging progress, charging current & voltage, and battery cycle times of each channel.
Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info
Light Weight and Portable
The 4 channel fast charger PC-P461B has minimised the size and weight, and the new handle design makes the charger solid and easy to carry.
Key Features
- 4-ch simultaneous fast charging
- Charge pure 28.8V B-mount batteries
- Charge 14.4V/28.8V Bi-voltage B-mount batteries
- 33.6V/3A 100W super fast charging
- 3.5-inch colour LCD info display
- Battery cycle times display
- Top large charging indicators
