- 2-ch simultaneous charging
- DC 16.8V 3A 50W per channel
- Charge B-mount batteries with 14.4V mode
- Charge SWIT BIVO B-mount batteries
- Charge Bebob and Core B-mount batteries
- Support AC to 4-pin XLR output
- Light weight and portable
2-ch simultaneous B-mount Charger

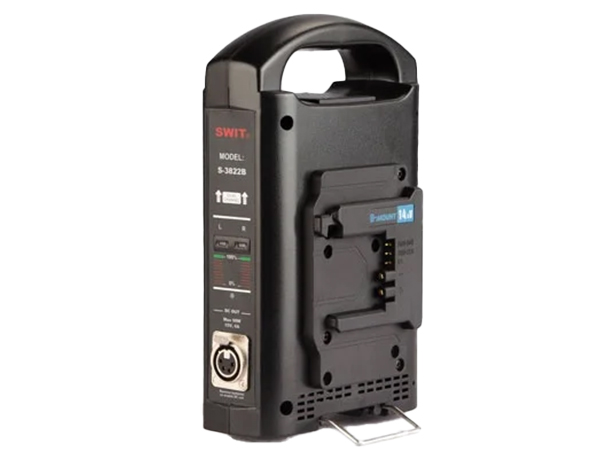

The S-3822B is a portable 2-ch simultaneous charger for B-mount batteries. The charging output is DC 16.8V, 3A, 50W each channel.
14.4V Charging Mode
The S-3822B charges B-mount batteries at DC16.8V, compatible with the B-mount batteries that support 14.4V nominal voltage mode, like SWIT BIVO series, Bebob and CoreSWX Bi-voltage series.
LED Charging Indicators
S-3822B has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Red:
the battery is under charging status
Green:
the battery is fully charged
Red flash:
Charging error, please check the battery
AC-DC Adapting Output
S-3822B has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 4-pin XLR female to male cable (optional purchase), you can use the charger as AC-DC adaptor of DC 15V, 6A, 90W output.
