What's In The Box?
1x VANGO-100L light with barndoor 1x Swanneck ball head connector 1x AC-DC adaptor 1x Carrying bag
The VANGO-100L is a slim, portable 100W RGBW panel with a unique 3x0.5’ long ratio size. It offers extremely high color light output, equivalent to the intensity of a regular 300W RGB color light, making it ideal for flexible video studio setups.
3x0.5’ Long Ratio, 21mm Ultra Slim
With SWIT's unique Edge Mounted SMD and 90° high-efficiency light guide technology, the VANGO-100L is designed with an ultra-slim profile of just 21mm thickness. The light is diffused to create a soft, even spread that illuminates the entire environment.
Time Division Technology for Brighter Color Light
Standard RGB panels are typically bright in CCT mode but significantly dimmer in RGB color mode due to shared power distribution between RGB and white LEDs. With SWIT’s unique Time Division Drive technology, the full power of the light can be assigned to RGB color LEDs, greatly enhancing the intensity of color output. The 100W VANGO-100L matches the color intensity of a regular 300W RGB light.
Control Panel

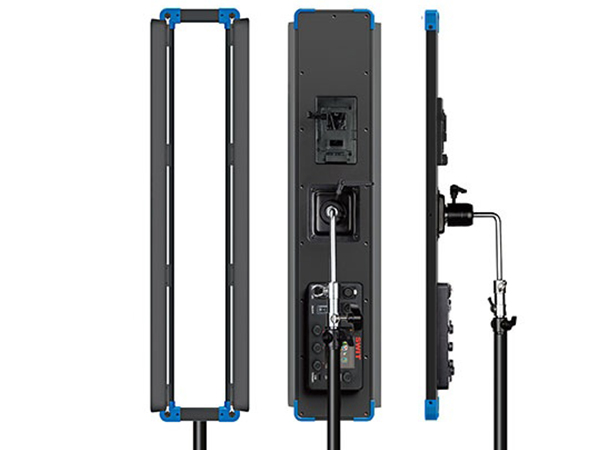

The rear control panel of the VANGO-100L supports 5-pin DMX in/out, 4-pin XLR DC 11-36V input, and includes a V-mount battery plate (Gold mount option available). It also features a large color LCD with menu and hotkeys for convenient color selection. The USB-A port allows for firmware updates, user color profile uploads, and powers a wireless DMX receiver.
On-Board 3.5-Inch Color LCD
This visual display simplifies color selection for quick, intuitive adjustments.
Bluetooth APP Control
Download the “SWIT Console” app from the iOS App Store or Google Play to connect and control VANGO lights via Bluetooth.
SWIT Console APP
The app control supports CCT, HSI, RGB, and CIE color modes, as well as the selection of preset color Gels and light effects.
Swanneck Strong Ball Head
The VANGO-100L includes a durable swanneck ball head for light stand mounting, compatible with both junior pin male and baby pin female mounts.
