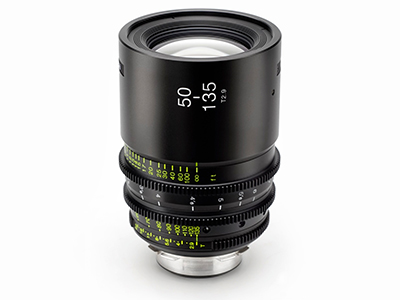

Tokina Cinema ATX 50-135mm MKII T2.9 Lens (PL Mount)

Code: CRK/KPC-1017PL

For purchasing information

Overview
Specifications

The Tokina Cinema 50-135mm T2.9 MK II delivers a highly versatile zoom range in a compact design. Tokina engineers have created a telephoto lens that is parfocal, has dramatically reduced breathing and image shift, and a de-clicked, 9-bladed, curved iris for beautiful bokeh and precise exposure control. With its 3.3 foot close-focus capability, the lens allows you the freedom to capture a tight close-ups while maintaining a comfortable distance from your subject.

The 50-135mm T2.9 MKII cinema lens is an update to the original 50-135mm T3 Telephoto zoom lens, it has received an all new metal mechanical housing featuring industry standard 0.8 MOD cinema gears, 300 degree focus throw, updated T2.9 iris, and 95mm front diameter for common cinema accessories. Designed to match the mechanical and optical properties of the popular Tokina Cinema 11- 20mm T2.9 zoom. The 50-135mm T2.9 MKII retains optical design features similar to the 11- 20mm T2.9 including parfocal design to retain focus while zooming, limited focus breathing, and low distortion. Both lenses in the series feature an interchangeable mount between PL, EF, Sony E, MFT, and Nikon F mounts.

Specifications

Focal Length	50 to 135mm
Lens Mount	Arri PL
Format	Super35/APS-C
Image Circle	31.2 mm
Maximum T-Stop	T2.9
Maximum F-Stop	f/2.8
Minimum T-Stop	T22
Minimum F-Stop	f/22
Minimum Focus Distance from Image Plane	39.6" / 1.01 m
Optical Design	18 Elements in 14 Groups
Iris Blades	9
Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch
Front Diameter	95 mm
Filter Thread	86 mm
Focus Scales	Imperial
Focus Rotation	300°
Zoom Ratio	2.7x
Maximum Magnification Ratio	1:5.89
Length	5.81" / 147.5 mm
Weight	3.37 lb / 1.53 kg
