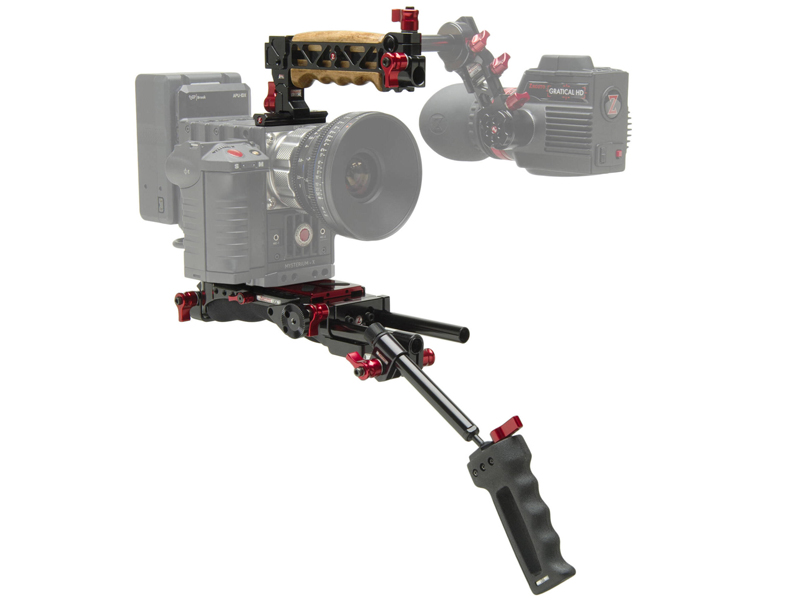

The Zacuto's Cine EVF Recoil conforms to the Recoil camera balance philosophy championed by Zacuto. The Cine Recoil includes the VCT Universal baseplate, Zgrip Z-Mount Zwivel, and Recoil Handle. This recoil rig is designed to provide optimal balance with the RED One, Epic, Scarlet, Blackmagic Cinema Camera, AJA Cion, and ARRI ALEXA. Optimal balance defined by Zacuto as the point where the lens mounts to the camera sitting directly over the camera operator's shoulder. This frequently requires focus, monitoring, and camera controls to be relocated forward, to balance the rig correctly.

The VCT Universal Baseplate has a built-in, curved shoulder pad, a v-wedge tripod connector, 6.5" (16.5 cm) iris rods, and rows of 1/4"-20 threads along the sides for accessories. The recessed rod mount offers maximum accessory space under your camera lens. The Zgrip Z-Mount Zwivel is a fully articulating handgrip that attaches to a single 15mm rod with a Zwivel mount that can be set at multiple different angles for comfort and ease of use. The Recoil Handle is a solid top grip that attaches directly to your camera with an included 5" Z-Rail. The Recoil Handle can accept two cold-shoe accessories and has a quick release 15mm rod port.

Zacuto VCT Universal Baseplate

The Zacuto VCT Universal Baseplate features a built-in, curved shoulder pad, a V-lock plate, removable, 15mm LWS spring-loaded rod clamps with 1.6" of vertical adjustment, and rows of 1/4"-20 mounting threads along the sides for accessories. The contoured and cushioned shoulder cavity allows your camera to sit only three quarters of an inch above your shoulder, and you can mount the VCT Universal Baseplate to a tripod with a VCT14 QR plate. The shoulder pad is made of soft-gel polymer and a two-piece shoulder pad accounts for the natural slope in shoulder, and is designed to balance your camera on the operator's right shoulder only. The V-lock tripod connector also incorporates 1/4"-20 and 3/8"-16 threads for direct connection to your tripod quick release plate.

The spring-loaded rod clamps are set far back in the baseplate. This allows you to position your camera further back on the plate, thus keeping the balance point of your rig directly over your shoulder. The sliding track of the rod riser offers 0.87" of vertical adjustment. The riser can also be flipped to offer up to 1.57" of adjustment from the lowest point. The shoulder pad is set as far forward on the plate as possible in order to maximize your accessory capable rod area and help with balance. This baseplate is designed to provide balance and comfort for every camera.

Key Features

• Designed to work with virtually any camera
• Enables you to go from hand held/shoulder shooting to tripod shooting without changing mounting plates
• Attaches to any VCT14 QR tripod adapter system
• Vertically adjustable 15mm LWS rod clamps with spring-loaded locking levers
• Rear mounted screw thread sockets for 15mm rods following the Light Weight Rod Standard (LWS) of 60mm on-center distance between rods
