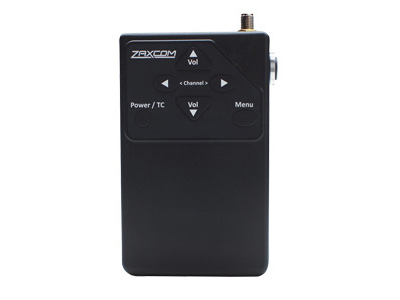

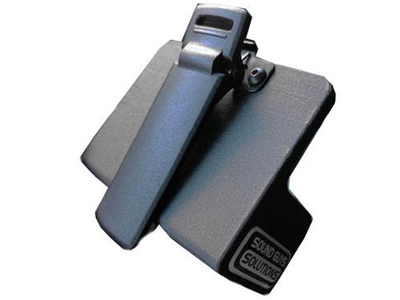

Zaxcom URX100 Receiver

Code: ZAX/URX100

The URX100 is a multipurpose UHF receiver that can be configured as a camera link receiver, an IFB receiver with walkie talkie interface or a standalone IFB receiver with timecode view and delay.The URX100 is compatible with any Zaxcom Digital Recording Wireless transmitter. The UHF diversity receiver utilizes a tunable tracking front end filter to combat interference and extend range.

For purchasing information

Enquire Now

Overview
Specifications

Design

The URX100 is a multipurpose UHF receiver that can be configured as a camera link receiver, an IFB receiver with walkie talkie interface or a standalone IFB receiver with timecode view and delay.

Connectivity

The URX100 is compatible with any Zaxcom Digital Recording Wireless transmitter. The UHF diversity receiver utilizes a tunable tracking front end filter to combat interference and extend range.

Two antennas (one internal, one external) provide dropout resistance. Operating distances can exceed 500 feet (152 m).

Camera Link

It features two modes of operation: stereo audio output or mono audio output with SMPTE timecode. Stereo audio or balanced mono audio is output from the 3.5mm headphone jack. SMTPE timecode and mono unbalanced audio is output from the auxiliary TA5 connector.

Walkie Talkie Interface with URXL1 Lanyard

The URX100 can be connected to the remote speaker/mic port of a walkie talkie. You can route the walkie talkie audio left, right or center by the URX100 and/or mix the walkie audio with the URX100 receiver audio. Both the URX100 and walkie talkie audio to be heard at the same time with a single pair of headphones when using the URXL1 Lanyard.

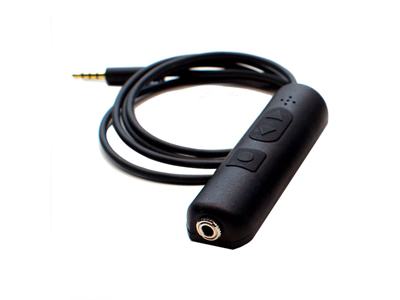

The URXL1 Lanyard has a push-to-talk button and a microphone. Volume control is adjustable. Any headphone with a 3.5mm jack can be plugged into the URXL1 Lanyard. The URXL1 Lanyard is optional.

IFB Receiver

Menu options include mono or stereo audio and view timecode on the OLED display. Up to six frames of programmable delay allow for video sync.

Paired with the optional URXL1 lanyard both the IFB audio and walkie talkie audio can be listened to. Talk back is through the built-in URXL1 microphone. Volume is adjustable.

The URX100 can monitor a stereo signal or route the audio to left, right and both ears as a mono mix. The stereo signal can be selected at the URX100 so that a boom operator can monitor one of two transmitted channels that can include a public IFB feed as well as a private communication channel. This monitored audio can also be combined with the audio from a connected walkie with left, right or center routing.

Remote Control

A browser based remote control interface lets the URX100’s to be programmed remotely.

Power

3-AA lithium batteries provides up to 10 hours of runtime. Alkaline lasts up to 8 hours.

Specifications

RECEIVER
- Receiver RF Channels: 1
- Diversity method: antenna switching
- RF Modulation: proprietary digital method
- RF Frequency Range: 512 to 698 MHz
- RF Frequency Step: 100 KHz
- RF Signal Bandwidth: 200 KHz
- Channel Separation: 500 KHz (700 KHz recommended)
- Sensitivity: -114 dBm
- Antenna Connector: 50-ohm SMA female
- Receiver Audio – Analog Output
- Dynamic Range: 110 dB
- Distortion: 0.002%
- Frequency Range: 20Hz to 16kHz
- DAC Bit-depth: 24 bits
- Connector: TA-5M
AUDIO OUTPUT
- Impedance: 16 ohms
- Output Power: 100 mW
- Output Type: Headphone driver
- Output connector: 3.5 mm
- Mode: 2-Channel unbalanced or 1-Channel balanced
- Max Output Level: +12 dBm
TIMECODE
- Timecode output connector: TA5 Male
- Timecode output level: .01VPP – 3VPP Variable
- Time code output rate: 23.98, 24, 25, 29.97 ND, 29.97 DF, 30
TA5 AUXILIARY CONNECTOR
- Timecode output, Left audio out, Walkie Microphone out, Walkie Audio return
POWER
- Internal Power: 3 AA Batteries
- Li-Ion Battery Life: Up to 11 hours
- NiMH Battery Life: Up to 9 hours
- Alkaline Battery life: Up to 7 hours
- *these times are approximate and will be refined as more testing is done*
MISC.
- TA5 Auxiliary Connector
- Timecode output, Left audio out, Walkie Microphone out, Walkie Audio return
- Weight: 4.5 oz without batteries
- Dimensions: 4.1” x 2.5” x .9”
- Display: Graphic OLED Panel
