The CIMO series cine-class V-mount batteries feature high power load, 2× D-tap, 65W USB-C, OLED power information display, battery life inspection, and 1.2m drop-proof design for professional cinematographers.
Key Features
- Cine style V-mount battery
- 196Wh/13.6Ah large capacity
- 200W/16A constant high load, 270W peak
- 2×D-tap output & charging input
- 1x USB-A 5V/9V 2A 18W output
- 1x USB-C 65W output & 60W input
- OLED remaining run time display
- Rear LED torch for dark environment
- Strong housing 1.2m drop-off proof
- BMS multiple circuit protections
14.4V, 196Wh Capacity
The CIMO-200S consists of 16 ternary lithium cells, providing a nominal voltage of 14.4V, 196Wh, and 13.6Ah large capacity.
The ternary lithium cells offer higher energy density, achieving greater capacity with a smaller size, and excellent low-temperature performance, capable of supplying power in environments as cold as -20°C.
200W Constant / 270W Peak High Load Output
The CIMO-200S delivers a constant 200W/16A high load even at 1% capacity (peak load up to 270W), powering high-demand cine cameras and on-camera devices. The high load cells also extend battery life compared to standard batteries when running at full load for extended periods.
100W 6A Fast Charging
The CIMO-200S supports 100W/6A fast charging via SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, doubling the charging speed. The 6A fast charging does not affect the lifespan of the ternary lithium cells.
The 196Wh battery can be charged from 0 to 80% in just 1.7 hours and fully charged within 2.75 hours.
OLED Power Information / Health Level Display
The CIMO-200S battery features an OLED screen displaying battery status and power information, including power percentage and remaining run time. By long-pressing the power check button, you can view battery cycle times and health level for easy battery management.

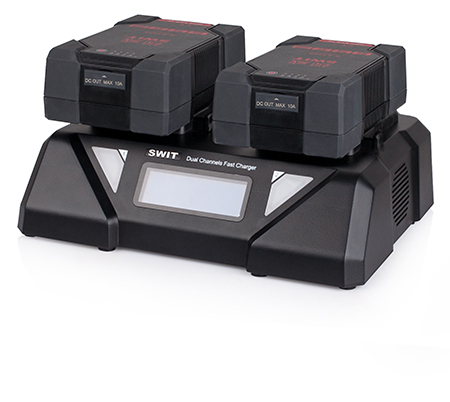

SWIT S-3812S V-Lock Fast Charger
Key Features
- 2-ch simultaneous charging
- Identify battery type and adjust charging method
- 6A fast charging for SWIT particular batteries
- 3A charging for normal batteries
- Support AC to 4-pin XLR output
- Support battery to 4-pin XLR output
- LCD display charging/adapting info
Battery Charging + DC Output
The S-3812S also outputs DC power via 4-pin XLR port, while simultaneously charging batteries*. Via a 4-pin XLR female to male cable (sold seperately), it can supply 16.8V DC power with a max load of 200W/12A.
*2 batteries sequential, when AC load is less than 100W
