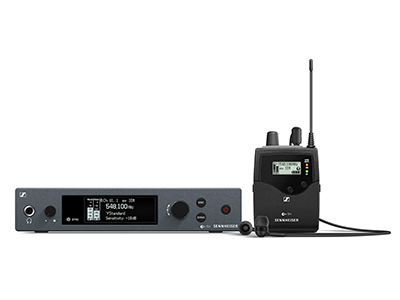

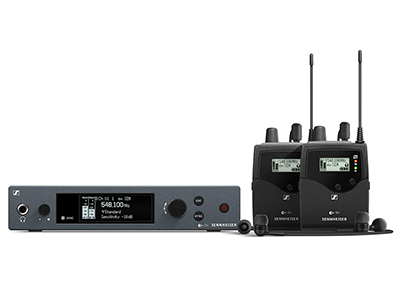

Sennheiser EW IEM G4 Wireless In-Ear Monitoring System (AS: 520 - 558 MHz)

Code: SEN/509626

$1,515.00

Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Sennheiser EW IEM G4 Wireless In-Ear Monitoring System (AS: 520 - 558 MHz) is back in stock.

Overview
Specifications

What's In The Box?

1x SR IEM G4 stereo transmitter

1x EK IEM G4 stereo receiver

1x IE 4 earphones

2x AA batteries

1x rod antenna

1x GA 3 rackmount set

1x quick guide

1x safety guide

1x manufacturer declaration sheet

1x power supply

Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!

Key Features

Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
Half-rack stereo transmitter in a full-metal housing with OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 50 mW) depending on country regulations

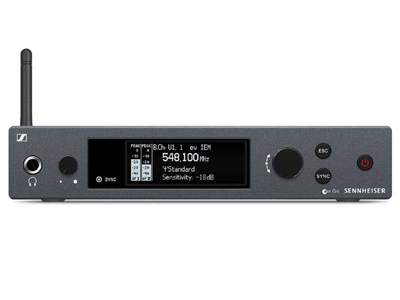

SR IEM G4
Frequency range	AS: 520 - 558 MHz
Dimensions	Approx. 202 x 212 x 43 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	<0.9 %
Weight	Approx. 980 g
Audio input	2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output	¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio	>90 dB
RF output power	switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Modulation	Wideband FM stereo (MPX pilot tone)
Power supply	12 V DC
Current consumption	max. 350 mA
Max. Input voltage	+22 dBu
Transmission frequency	Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
AF frequency response	25 Hz to 15 kHz
Temperature Range	-10 °C to +55 °C
Frequency stability	±10 ppm
Antenna Output	BNC socket, 50 Ω

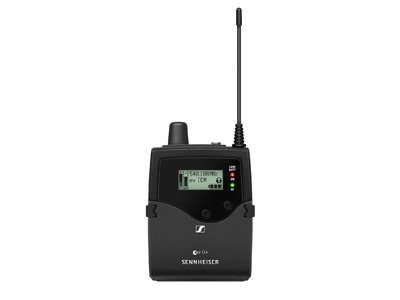

EK IEM G4
Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight (incl. batteries)	approx. 125 g
Signal-to-noise ratio	approx. 90 dBA
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	approx. 4 to 6 hours (depending on volume level)
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA
Adjacent channel rejection	Typically ≥ 65 dB
Audio-Output-Power	2 x 100 mW at 32 Ω
Intermodulation attenuation	Typically ≥ 70 dB
Limiter	–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Powering	3 V battery / 2.4 V rechargeable battery
Receiving frequency	Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
RF sensitivity	< 4 μV, typ. 1.6 μV for 52 dBA rms S/N
Squelch	5 to 25 dBµV, adjustable in steps of 2 dB
Bass Boost	+8 dB at 8 kHz
Temperature Range	-10 °C to +55 °C
Receiver Principle	Adaptive diversity
Blocking	≥ 80 dB
