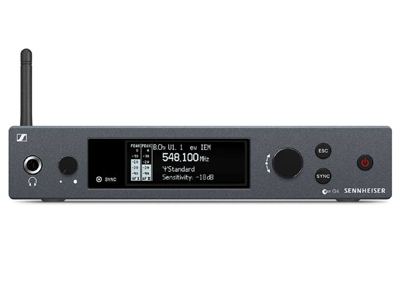

Sennheiser EW IEM G4 Wireless Transmitter - Half Rack (AS: 520 - 558 MHz)

Code: SEN/509631
$740.00

Half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Sennheiser EW IEM G4 Wireless Transmitter - Half Rack (AS: 520 - 558 MHz) is back in stock.

What's In The Box?

  • 1x SR IEM G4 stereo transmitter
  • 1x rod antenna
  • 1x GA 3 rackmount set
  • 1x power supply
  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

    Key Features

    • Half-rack stereo transmitter in a full-metal housing with OLED display for full control
    • Easy and flexible wireless synchronization between transmitter and receiver via infrared
    • Compatible with Sennheiser WSM control software for flexible frequency allocation
    • Up to 16 compatible channels
    • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
    • Transmission Range: up to 100 meters / 300 feet
    • High RF output power (up to 50 mW) depending on country regulations
    SR IEM G4
    Frequency range AS: 520 - 558 MHz
    Dimensions Approx. 202 x 212 x 43 mm
    Compander Sennheiser HDX
    THD, total harmonic distortion <0.9 %
    Weight Approx. 980 g
    Audio input 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
    Audio output ¼" (6.3 mm) stereo jack socket, balanced
    Signal-to-noise ratio >90 dB
    RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
    Switching bandwidth up to 42 MHz
    Peak deviation ±48 kHz
    Nominal deviation ±24 kHz
    Modulation Wideband FM stereo (MPX pilot tone)
    Power supply 12 V DC
    Current consumption max. 350 mA
    Max. Input voltage +22 dBu
    Transmission frequency Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
    AF frequency response 25 Hz to 15 kHz
    Temperature Range -10 °C to +55 °C
    Frequency stability ±10 ppm
    Antenna Output BNC socket, 50 Ω
